BreizhCTF 2023 - 1001 pattes
Challenge details
| Event | Challenge | Category | Points | Solves |
|---|---|---|---|---|
| BreizhCTF 2023 | 1001 pattes | Programming | ??? | ??? |
Ants are artists whose inspiration is still far too little known.
https://www.youtube.com/watch?v=1X-gtr4pEBU (watch it to understand the challenge)
Author: Zeecka
- File: Examples.zip
- md5sum:
74984c1c14a69cff6d5d76985919a55c - File: challenge.png
- md5sum:
aa4e2b232bced0d882967d35570afc14
TL;DR
The challenge requires reimplementing an automaton called “Langton’s Ant” (or Langton’s ants). A bruteforce then has to be performed on a limited number of parameters in order to reach the target image. Once the image is identified, the flag can be derived from the various input parameters.
Methodology
The challenge requires reimplementing an automaton called “Langton’s Ant” (or Langton’s ants). A relevant visual description of the automaton is available on youtube.
The expected solution is the hash of a JSON configuration whose parameters are as follows (excerpt from the config1.json file):
{
"colors": {
"cadetblue": "L",
"hotpink": "R",
"seagreen": "L",
"white": "R"
},
"sizes": {
"cell": 15,
"border": 5,
"grid": 30
},
"steps": 200
}Here, we have 3 main keys:
- colors (indicating the directions the automaton must follow)
- sizes (defining the graphical properties of the render)
- steps (number of iterations of the automaton)
First, it is important to reimplement an algorithm that generates the example files from these configurations:

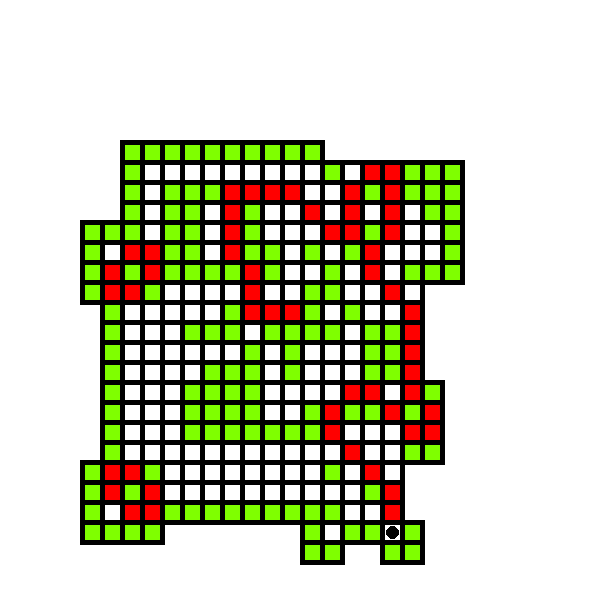

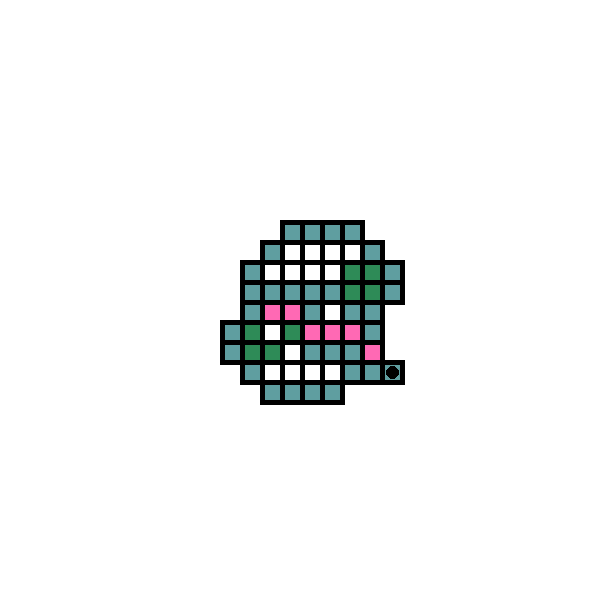

| Example 1 | Example 2 |
|---|---|
 |  |
In these files and their configuration, we do find the properties of the “sizes” key (namely, the cell size, the border size and the number of cells).
The black dot indicates the final position of the ant.
The various pieces of information that can be deduced from the different examples and from the challenge’s additional notes make it possible to arrive at a working script, a proposed implementation of which is shown below:
Example implementation
#! /usr/bin/env python3
# -*- coding: utf-8 -*-
# pylint: disable=invalid-name, line-too-long
"""
Langton's Ant program
"""
import sys
import json
from PIL import Image, ImageDraw
sys.setrecursionlimit(10000)
class Ant:
""" Langton's Ant. """
def __init__(self, config, position=None):
self.img = Image.new("RGBA", (WINDOW_WIDTH, WINDOW_HEIGHT))
self.steps = 0
self.config = config
self.colors = list(self.config.keys())
self.grid = [[None for i in range(GRID_WIDTH)]
for j in range(GRID_HEIGHT)]
self.position = position
if position is None:
self.position = (GRID_WIDTH // 2, GRID_HEIGHT //
2) # Middle of the screen
self.prev_position = self.position
self.orientation = "T"
self.update()
def update(self):
""" Move ant and change color. """
if self.steps < MAX_STEPS:
self.steps += 1
x, y = self.position
if self.grid[y][x] is None: # White by default
self.grid[y][x] = "white"
for i, color in enumerate(self.colors):
if self.grid[y][x] == color:
new_color = self.colors[(i+1) % len(self.colors)]
self.grid[y][x] = new_color # Update color
self.move(self.config[new_color]) # Move ant
break
try:
self.update()
except IndexError:
self.save()
else:
self.save()
def move(self, turn):
""" Move ant. Turn can be L or R """
self.prev_position = self.position
x, y = self.position
if self.orientation == "T":
if turn == "L":
x, o = x-1, "L"
else:
x, o = x+1, "R"
elif self.orientation == "L":
if turn == "L":
y, o = y+1, "B"
else:
y, o = y-1, "T"
elif self.orientation == "B":
if turn == "L":
x, o = x+1, "R"
else:
x, o = x-1, "L"
else: # R
if turn == "L":
y, o = y-1, "T"
else:
y, o = y+1, "B"
self.position = (x, y)
self.orientation = o
def save(self):
""" Save ant drawing as image. """
# Draw squares
img = ImageDraw.Draw(self.img)
for y in range(GRID_HEIGHT):
for x in range(GRID_WIDTH):
color = self.grid[y][x]
if color is None:
continue
img.rectangle([
(x * CELL_SIZE, y * CELL_SIZE),
(x * CELL_SIZE + CELL_SIZE + CELL_BORDER - 1, y * CELL_SIZE + CELL_SIZE + CELL_BORDER - 1)],
outline="black", fill=color, width=CELL_BORDER
)
# Draw ant
x, y = self.prev_position
ant_size = ANT_SIZE - 1
padding = (CELL_SIZE + CELL_BORDER - ant_size)//2
img.ellipse([
(x * CELL_SIZE + padding, y * CELL_SIZE + padding),
(x * CELL_SIZE + ant_size + padding, y * CELL_SIZE + ant_size + padding)],
fill="black"
)
filename = "exemple1.png"
self.img.save(filename)
if __name__ == "__main__":
# Load config
with open('config1.json', encoding='utf-8') as json_file:
data = json.load(json_file)
CONFIG = data["colors"]
MAX_STEPS = data["steps"]
SIZES = data["sizes"]
CELL_INSIDE = SIZES["cell"]
CELL_BORDER = SIZES["border"]
GRID_WIDTH = SIZES["grid"]
CELL_SIZE = CELL_INSIDE + CELL_BORDER
ANT_SIZE = CELL_INSIDE - 2
GRID_HEIGHT = GRID_WIDTH # Square image
WINDOW_WIDTH = CELL_SIZE * GRID_WIDTH + CELL_BORDER
WINDOW_HEIGHT = CELL_SIZE * GRID_HEIGHT + CELL_BORDER
Ant(CONFIG)Once the examples have been implemented, the challenge’s solution consists of recovering the parameters of an initial configuration for a given image.
Solution implementation
Challenge image

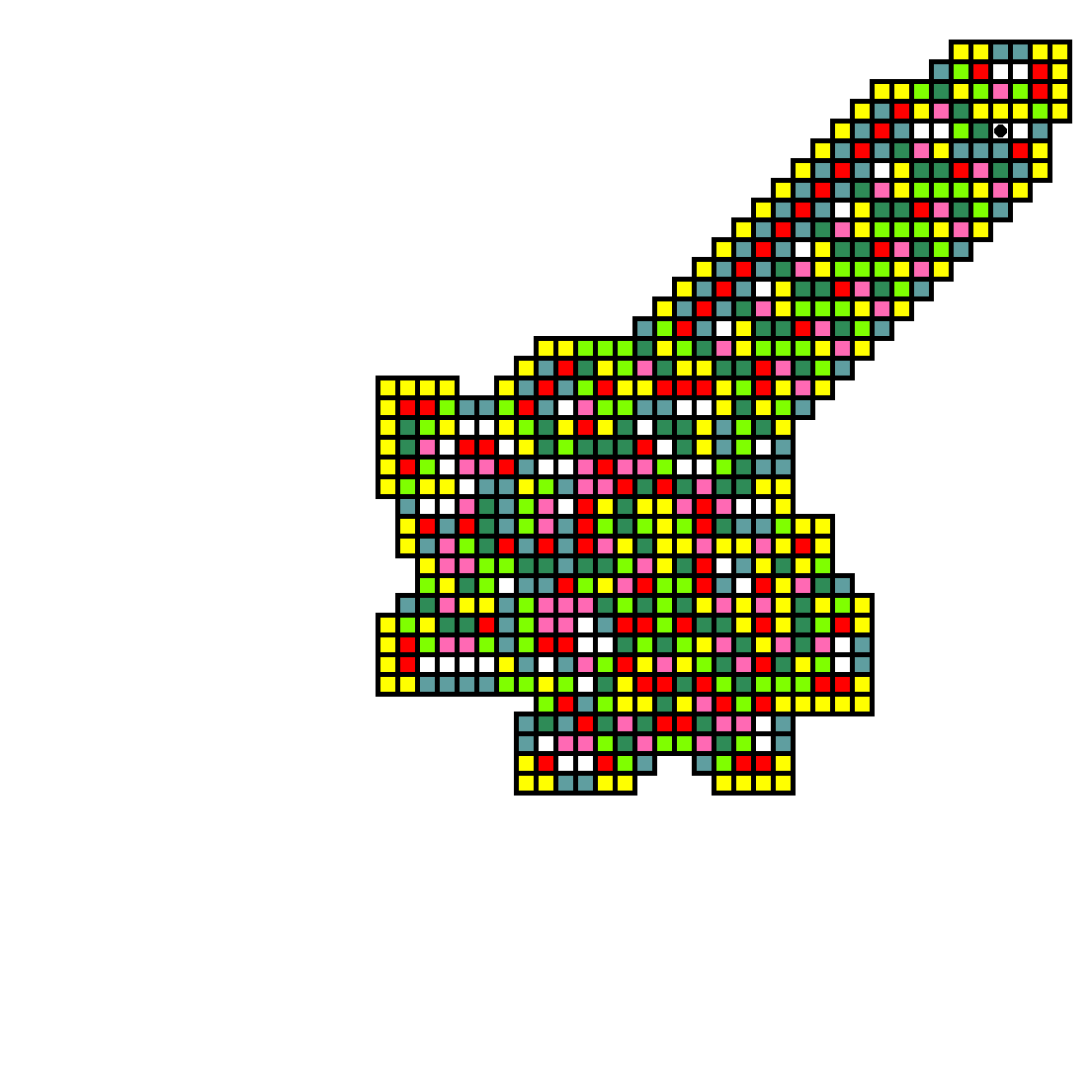

From the challenge image, we can recover the variables related to the grid size. The number of colors is also an important factor to recover from the challenge file. We also know that the number of iterations is less than 10000.
We therefore have a partial configuration file:
{
"colors": {
"cadetblue": "?",
"chartreuse": "?",
"hotpink": "?",
"red": "?",
"seagreen": "?",
"white": "?",
"yellow": "?"
},
"sizes": {
"cell": 15,
"border": 5,
"grid": 55
},
"steps": 10000 // maximum
}The solution therefore consists of generating all the possible color rotation solutions with iterations that can go up to a maximum of 10000.
In order to improve our bruteforce attack, it is worth noting that:
- When a cell (transparent in the challenge image) becomes colored, the color configuration (as well as the following iterations) can be excluded. There is therefore no need to compute them.
- When the final position of the ant does not match between the challenge and the generated image, the latter can be excluded. Thus, image verification can, as a first step, be based on the final position of the ant.
- When a cycle is detected (grid state, ant position and orientation are similar), the computation of the next iterations can be excluded. This implementation is, however, complicated and costly, and is therefore not necessary.
In order to carry out our bruteforce attack on the various parameters, we reuse our initial script, to which we add the previously mentioned checks, as well as a product of the different color combinations with a for loop. A check of the solution is performed at each iteration:
# Test each combination of L/R up to `MAX_STEPS` steps.
N = 2**len(CONFIG)
for j in range(N):
print(f"{j}/{N}")
bin_j = bin(j)[2:].zfill(len(CONFIG)) # binary notation tricks
conf = bin_j.replace("0", "L").replace("1", "R")
CONFIG = {
"cadetblue": conf[0],
"chartreuse": conf[1],
"hotpink": conf[2],
"red": conf[3],
"seagreen": conf[4],
"white": conf[5],
"yellow": conf[6]
}
# Start drawing
try:
Ant(CONFIG)
except Exception() as e:
print(e)
continueLoop over all the color combinations
def update(self):
""" Move ant and change color. """
# We need to quit as soon as possible to reduce computing
# Compute current shape
current_shape = [[k is not None for k in row] for row in self.grid]
# Check if current shape is already bigger (if so, quit)
for row in range(len(SHAPE)):
for p in range(len(SHAPE[0])):
if current_shape[row][p] is not None and SHAPE[row][p] is None:
return
# Check if shape is the same
if current_shape == SHAPE:
if self.grid == MATRIX:
print("[+] Found valid solution !")
print(f"[i] Steps number: {self.steps}")
print(f"[i] Valid configuration: {self.config}")
self.save()
if self.steps < MAX_STEPS:Modification of the update function to check the solution
The final solution implementation is as follows:
#! /usr/bin/env python3
# -*- coding: utf-8 -*-
# pylint: disable=invalid-name, line-too-long, consider-using-enumerate
"""
Langton's Ant program
"""
import sys
import json
from PIL import Image, ImageDraw
sys.setrecursionlimit(15000)
class Ant:
""" Langton's Ant. """
def __init__(self, config, position=None):
self.img = Image.new("RGBA", (WINDOW_WIDTH, WINDOW_HEIGHT))
self.steps = 0
self.status = []
self.config = config
self.colors = list(self.config.keys())
self.grid = [[None for i in range(GRID_WIDTH)]
for j in range(GRID_HEIGHT)]
self.position = position
if position is None:
self.position = (GRID_WIDTH // 2, GRID_HEIGHT //
2) # Middle of the screen
self.prev_position = self.position
self.orientation = "T"
self.update()
def update(self):
""" Move ant and change color. """
# We need to quit as soon as possible to reduce computing
# Compute current shape
current_shape = [[k is not None for k in row] for row in self.grid]
# Check if current shape is already bigger (if so, quit)
for row in range(len(SHAPE)):
for p in range(len(SHAPE[0])):
if current_shape[row][p] is not None and SHAPE[row][p] is None:
return
# Check if shape is the same
if current_shape == SHAPE:
if self.grid == MATRIX:
print("[+] Found valid solution !")
print(f"[i] Steps number: {self.steps}")
print(f"[i] Valid configuration: {self.config}")
self.save()
if self.steps < MAX_STEPS:
self.steps += 1
x, y = self.position
if self.grid[y][x] is None: # White by default
self.grid[y][x] = "white"
for i, color in enumerate(self.colors):
if self.grid[y][x] == color:
new_color = self.colors[(i+1) % len(self.colors)]
self.grid[y][x] = new_color # Update color
self.move(self.config[new_color]) # Move ant
break
try:
self.update()
except IndexError:
return
def move(self, turn):
""" Move ant. Turn can be L or R """
self.prev_position = self.position
x, y = self.position
if self.orientation == "T":
if turn == "L":
x, o = x-1, "L"
else:
x, o = x+1, "R"
elif self.orientation == "L":
if turn == "L":
y, o = y+1, "B"
else:
y, o = y-1, "T"
elif self.orientation == "B":
if turn == "L":
x, o = x+1, "R"
else:
x, o = x-1, "L"
else: # R
if turn == "L":
y, o = y-1, "T"
else:
y, o = y+1, "B"
self.position = (x, y)
self.orientation = o
def save(self):
""" Save ant drawing as image. """
# Draw squares
img = ImageDraw.Draw(self.img)
for y in range(GRID_HEIGHT):
for x in range(GRID_WIDTH):
color = self.grid[y][x]
if color is None:
continue
img.rectangle([
(x * CELL_SIZE, y * CELL_SIZE),
(x * CELL_SIZE + CELL_SIZE + CELL_BORDER - 1, y * CELL_SIZE + CELL_SIZE + CELL_BORDER - 1)],
outline="black", fill=color, width=CELL_BORDER
)
# Draw ant
x, y = self.prev_position
ant_size = ANT_SIZE - 1
padding = (CELL_SIZE + CELL_BORDER - ant_size)//2
img.ellipse([
(x * CELL_SIZE + padding, y * CELL_SIZE + padding),
(x * CELL_SIZE + ant_size + padding, y * CELL_SIZE + ant_size + padding)],
fill="black"
)
filename = f"imgs/challenge_{self.steps}_{''.join(self.config.values())}.png"
self.img.save(filename)
def get_challenge(filename):
""" Return shape and matrix for a given ant art. """
challenge = Image.open(filename)
rgba_matrix_1d = []
for my in range(CELL_BORDER + 1, WINDOW_HEIGHT, CELL_SIZE):
for mx in range(CELL_BORDER + 1, WINDOW_WIDTH, CELL_SIZE):
rgba_matrix_1d.append(challenge.getpixel((mx, my)))
colors_map = {
(95, 158, 160, 255): "cadetblue",
(127, 255, 0, 255): "chartreuse",
(255, 105, 180, 255): "hotpink",
(255, 0, 0, 255): "red",
(46, 139, 87, 255): "seagreen",
(255, 255, 255, 255): "white",
(0, 0, 0, 0): None,
(255, 255, 0, 255): "yellow"
}
rgba_matrix = []
for i in range(0, len(rgba_matrix_1d), GRID_WIDTH):
rgba_matrix.append(rgba_matrix_1d[i: i+GRID_WIDTH])
matrix = [[colors_map[k] for k in row] for row in rgba_matrix]
shape = [[k is not None for k in row] for row in matrix]
return shape, matrix
if __name__ == "__main__":
# Load partial config with known variables such as sizes and colors number
with open('partial_config.json', encoding='utf-8') as json_file:
data = json.load(json_file)
CONFIG = data["colors"]
MAX_STEPS = data["steps"]
SIZES = data["sizes"]
CELL_INSIDE = SIZES["cell"]
CELL_BORDER = SIZES["border"]
GRID_WIDTH = SIZES["grid"]
CELL_SIZE = CELL_INSIDE + CELL_BORDER
ANT_SIZE = CELL_INSIDE - 2
GRID_HEIGHT = GRID_WIDTH # Square image
WINDOW_WIDTH = CELL_SIZE * GRID_WIDTH + CELL_BORDER
WINDOW_HEIGHT = CELL_SIZE * GRID_HEIGHT + CELL_BORDER
# Convert image to matrix of colors & shape
SHAPE, MATRIX = get_challenge("challenge.png")
# Test each combination of L/R up to `MAX_STEPS` steps.
N = 2**len(CONFIG)
for j in range(N):
print(f"{j}/{N}")
bin_j = bin(j)[2:].zfill(len(CONFIG)) # binary notation tricks
conf = bin_j.replace("0", "L").replace("1", "R")
CONFIG = {
"cadetblue": conf[0],
"chartreuse": conf[1],
"hotpink": conf[2],
"red": conf[3],
"seagreen": conf[4],
"white": conf[5],
"yellow": conf[6]
}
# Start drawing
try:
Ant(CONFIG)
except Exception() as e:
print(e)
continueRunning the script gives us the following output:
0/128
1/128
2/128
3/128
...
98/128
99/128
[+] Found valid solution !
[i] Steps number: 7103
[i] Valid configuration: {'cadetblue': 'R', 'chartreuse': 'R', 'hotpink': 'L', 'red': 'L', 'seagreen': 'L', 'white': 'R', 'yellow': 'R'}
100/128
101/128The solution file is, incidentally, generated by our script and saved under the name challenge_7103_RRLLLRR.png.
By adapting the configuration file, we recover the following initial configuration file:
{
"colors": {
"cadetblue": "R",
"chartreuse": "R",
"hotpink": "L",
"red": "L",
"seagreen": "L",
"white": "R",
"yellow": "R"
},
"sizes": {
"cell": 15,
"border": 5,
"grid": 55
},
"steps": 7103
}By respecting its formatting and computing its checksum, we recover the flag:
$ echo "BZHCTF{$(md5sum solution.json | awk '{print $1}')}"
BZHCTF{aaa2ed309b4ce6caf181f3923e80b136}Flag
BZHCTF{aaa2ed309b4ce6caf181f3923e80b136}
Author: Zeecka
